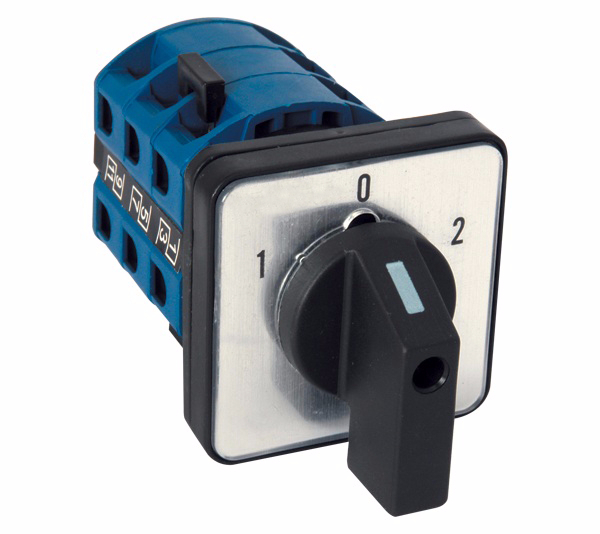

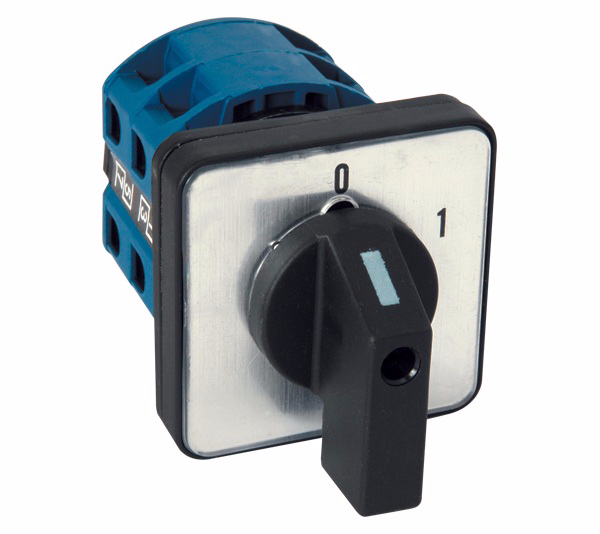

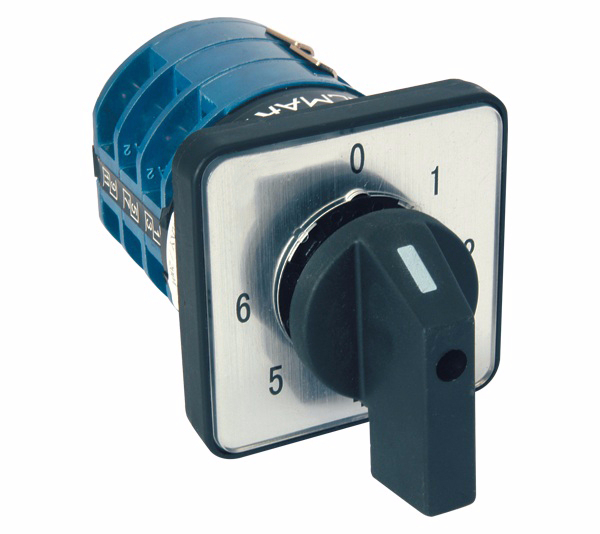

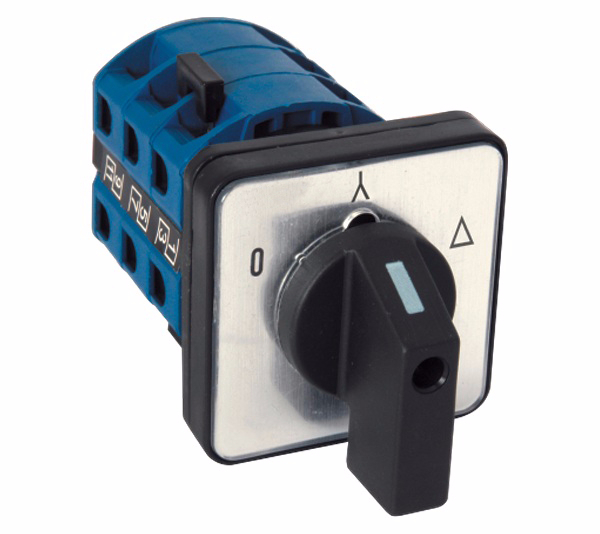

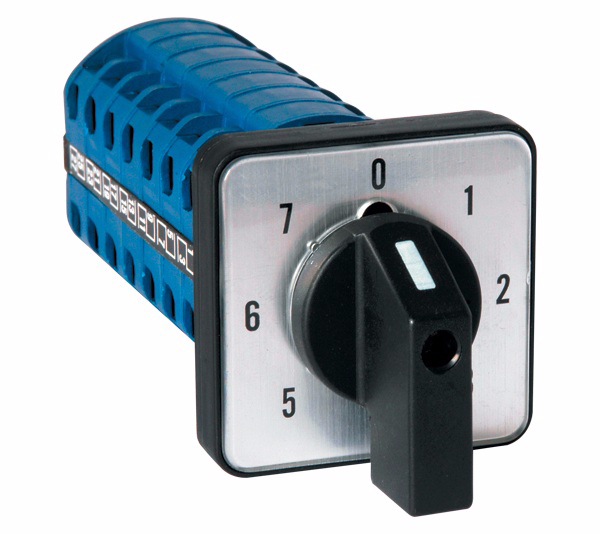

LW26GS Series Pad-lock type Switch 20A 25A 32A 63A 125A 160A LW26GS-20 LW26GS-20/04 LW26GS-32 LW26GS-32/04 LW26GS-63/04 switch

Description Brand Name : OEM brand Model Number : LW26GS Max. Current : 20A 25A 32A 63A 125A 160A Max. Voltage : 690V LW26GS Series Pad-lock type Switch 20A 25A 32A 63A 125A 160A LW26GS-20 LW26GS-20/04 LW26GS-32 LW26GS-32/04 LW26GS-63/04 switch   Introduction LW26GS series Pad-lock type switch are derivatives of LW26 series rotary switch. Insalled in equipment where it requires a pad-lock to lock the switch in certain position. For instance, to fix the switch in ON position, to prevent the unauthorized personnel from operation the switch. LW26GS series Pad-lock type switch complies with the GB 14048.3 and I EC 60947.3.   Classification (1)  The LW26GS switch has 6 current ratings: 20A, 25A, 32A, 63A, 125A and 160A.        For 20A and 25A are able to install M1 or M2 plate.        For 32A and 63A are able to install M2 or M3 plate.        For 125A and 160A are able to install M3 plate only. The M1 plate is able to put 2 lockers, M2 and M3 are able to put 3 lockers.   (2)  The LW26GS switch has 2 types:       Common type, black plate black handle       Quick stop type, with quick stop mark, yellow plate and red handle   Technical Parameter: Model LW26GS-20 LW28GS-25 LW26GS-32 LW26GS-63 LW26GS-125 LW26GS-160 Rated working voltage Ue 440V Rated thermal current Ith 20A 25A 32A 63A 125A 160A Rated working current Ie AC-21A 20 25 32 63 100 150 AC-22A 20 25 32 63 100 150 AC-23A 15 22 30 57 90 135 Power AC-23A 7.5 11 15 30 45 75 Operation (times) non-load 8500 8500 8500 8500 8500 8500 load 1500 1500 1500 1500 1500 1500 Total: 10000 10000 10000 10000 10000 10000   Dimension: Model Plate Dimensions (mm) Installation (mm) A C L H E F D1 (dia) D2 (dia) LW26GS-20/04-1 M1 48 43 42 33 36 36 8.5 4.5 LW26GS-20/04-2 M2 64 43 43 42 48 48 10 4.5 LW26GS-20X/04-1 M1 48 42 54 33 36 36 8.5 4.5 LW26GS-20X/04-2 M2 64 42 55 42 48 48 10 4.5 LW26GS-25/04-1 M1 48 45.2 50 33 36 36 8.5 4.5 LW26GS-25/04-2 M2 64 45.2 51 42 48 48 10 4.5 LW26GS-32/04-2 M2 64 58 55 42 48 48 10 4.5 LW26GS-32/04-3 M3 88 58 55 52 68 68 13 6 LW26GS-63/04-2 M2 64 66 72.5 42 48 48 10 4.5 LW26GS-63/04-3 M3 88 66 72.5 52 68 68 13 6 LW26GS-125/04-3 M3 88 84 88 52 68 68 13 6 LW26GS-160/04-3 M3 88 88 100 52 68 68 13 6
