BitForge Nano Bitcoin Solo Miner (Ghost Edition)

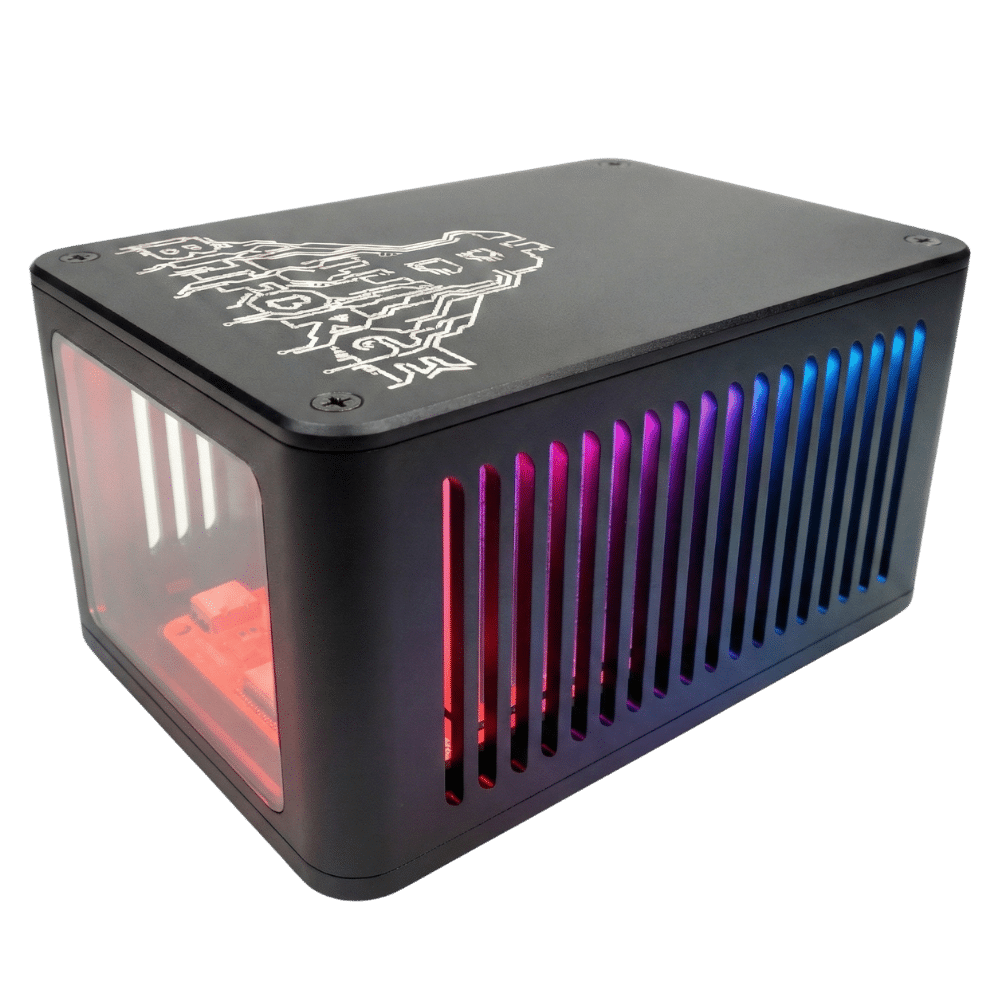

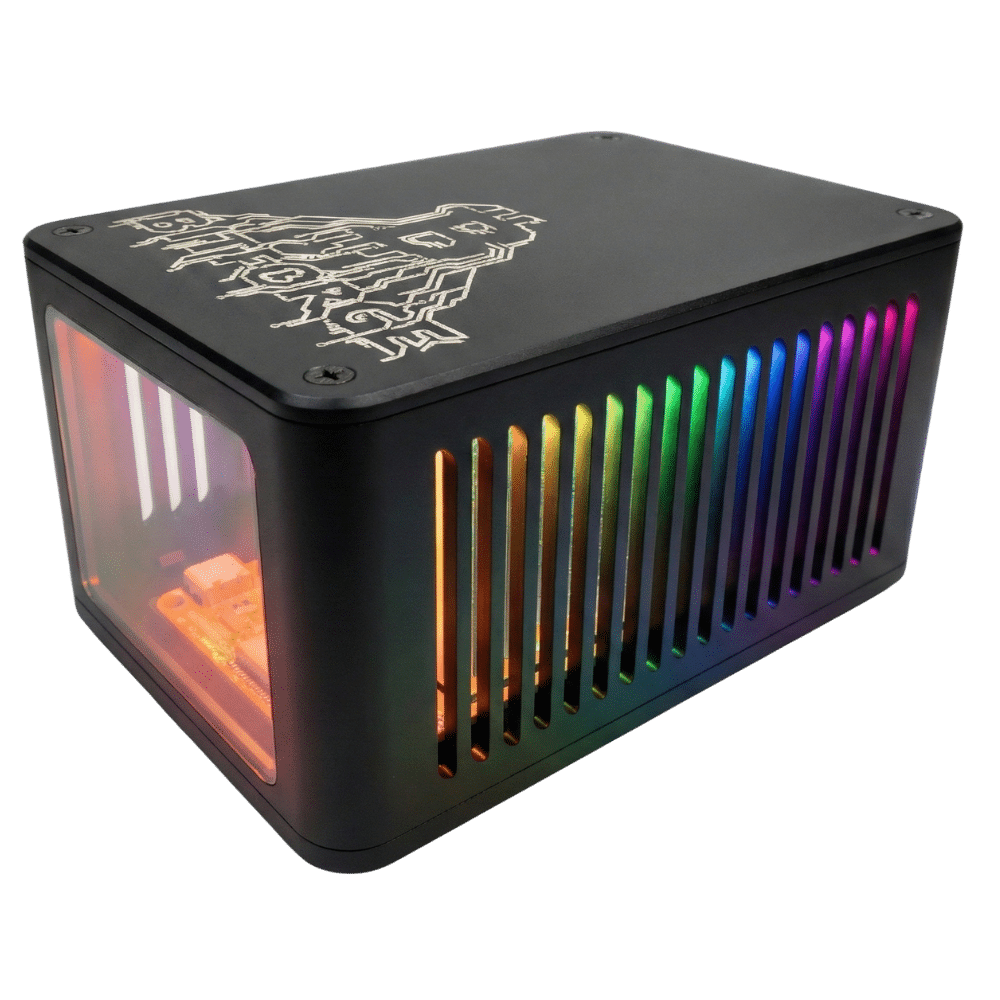

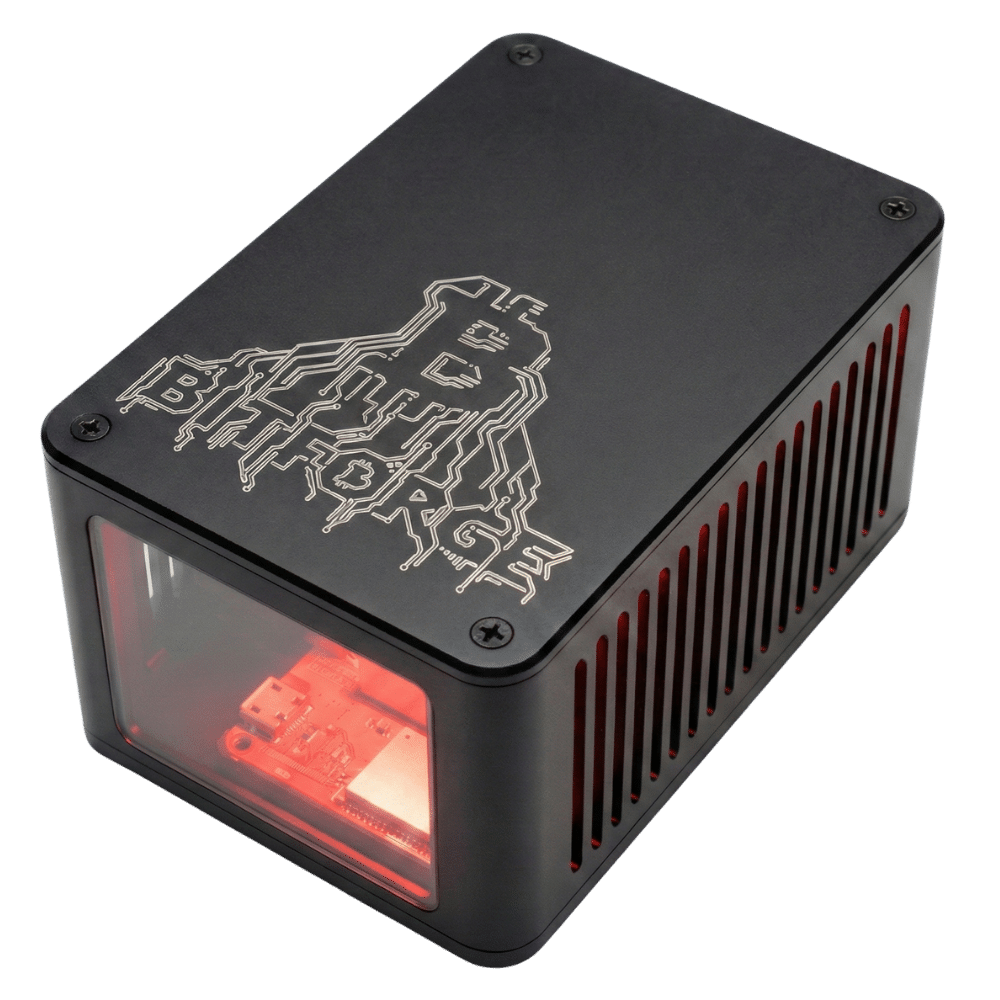

Description The BitForge Nano Ghost Edition is a compact, open-source Bitcoin miner delivering 2.6 TH/s of SHA-256 hashrate from two Bitmain BM1370 ASICs at just 43W. Engineered in Germany, the BitForge Nano Ghost Edition runs ForgeOS browser-based firmware over integrated Wi-Fi and houses its hardware in a fully enclosed extruded aluminum case with a smoked glass viewing window, pixel-addressable RGB lighting, and dual-fan cooling tuned to a whisper-quiet 29 dB. Solo Satoshi is an authorized US distributor. Every Ghost Edition ships same day from Houston, Texas with a 90-day Solo Satoshi warranty backed by professional support. 40,000 devices shipped to 70 countries since May 2024. BitForge Nano Ghost Edition Specifications Specification Details ASIC Chips 2x Bitmain BM1370 Algorithm SHA-256 Efficiency ~15 J/TH Power Input 12V DC barrel jack Controller ESP32-S3 microcontroller Connectivity Integrated 2.4 GHz Wi-Fi Firmware ForgeOS, browser-based, open-source Open-Source Licenses CERN-OHL-S-2.0, GPL-3.0 Multi-Miner Monitoring Native Swarm dashboard built into ForgeOS Mobile Monitoring HashLink & Hashwatcher ready Display Screenless (managed via ForgeOS web interface) Cooling Custom heatsink, dual fans, parallel VRM cooling, automatic fan control Lighting Pixel-addressable RGB LEDs with included IR remote Enclosure Extruded aluminum with smoked glass viewing window Dimensions 5.1 x 3.5 x 2.5 in (130 x 90 x 63 mm) Weight ~10.6 oz (~300 g) Firmware Recovery Port USB-C Mining Modes Solo or pool mining (any SHA-256 coin) Warranty 90-day Solo Satoshi warranty Shipping Same-day from Houston, Texas Three Preset Performance Modes ForgeOS includes three one-click performance profiles selectable from the dashboard with no overclocking knowledge required: Mode Hashrate Power Draw Efficiency Noise Eco ~2.0 TH/s ~30W ~15 J/TH ~23 dB Medium (default) ~2.4 TH/s ~37W ~15.5 J/TH ~29 dB Power ~2.6 TH/s ~43W ~15-16 J/TH ~34 db Per-mode wattage estimated from manufacturer efficiency rating (~15 J/TH per ASIC spec). Verified Power mode reading: 2.66 TH/s at 43.0W per ForgeOS dashboard. Per-mode noise levels not individually published by manufacturer. All values subject to ±10% variance based on ambient conditions and the silicon lottery. Eco: Lowest power draw and acoustics for bedrooms and living spaces. Medium: Balanced performance and noise. Factory default. Power: Maximum hashrate with slightly increased noise and heat. Automatic Fan Control is enabled by default and adjusts fan speed based on ASIC temperature. Native Swarm Multi-Miner Monitoring ForgeOS includes a built-in Swarm dashboard for monitoring multiple BitForge and AxeOS-compatible miners from a single web interface. View aggregate hashrate, per-device temperature, voltage, share counts, and uptime across your entire mining setup without third-party tools or subscriptions. What Does It Cost to Run a BitForge Nano Ghost Edition? The Ghost Edition draws 40W at default Medium mode. Here is what it costs to run 24/7 at common US residential electricity rates: Electricity Rate Monthly Cost Annual Cost $0.10/kWh $2.92 $35.04 $0.12/kWh (US average) $3.50 $42.05 $0.16/kWh $4.67 $56.06 $0.20/kWh $5.84 $70.08 For roughly the cost of a streaming subscription, the Ghost Edition runs 24/7 with a non-expiring shot at the full 3.125 BTC block reward. Calculate your exact cost with our mining calculator. What’s Included BitForge Nano Ghost Edition miner. 12V power supply. 3-prong US AC cord. RGB LED IR remote control. Multi-language printed quick-start guide. How to Set Up Your BitForge Nano Ghost Edition Setup takes under 5 minutes: Unbox and inspect: Confirm the miner, fan, power adapter, and remote are included and free from visible damage. Connect power: Plug the included 12V power adapter into the wall outlet, then connect to the miner. The fan begins spinning and internal lighting illuminates. Wait for the setup Wi-Fi: The device creates a broadcast network named Nano-XXXX (last four characters of the MAC address). Connect to your miner: Join the Nano-XXXX network from your phone, tablet, or computer. Open the configuration page: A browser window may open automatically. If not, navigate to 192.168.4.1. Enter Wi-Fi credentials: Set your hostname (default “BitForge”), enter your home Wi-Fi SSID and password, then save and restart. Note your station IP: After restart, the IP information page is available for 5 minutes. Write down the Station IP Address. This is how you connect to your BitForge from now on. Open the ForgeOS dashboard: Enter the station IP in any browser on your home network. Configure pool settings: Navigate to Pool Settings and enter your Stratum host, port, Bitcoin wallet address, and password. Save. Start mining: Verify hashrate, ASIC temperature, and shares on the dashboard. Why Buy Your BitForge Nano Ghost Edition from Solo Satoshi? Same-day shipping from Houston, Texas, USA (orders placed before 12 PM CST). Authorized US distributor working directly with the BitForge design team. 40,000 devices shipped to 70 countries since May 2024. Superior customer service from people that use this hardware.
